KQ5 Equalizer
Price:

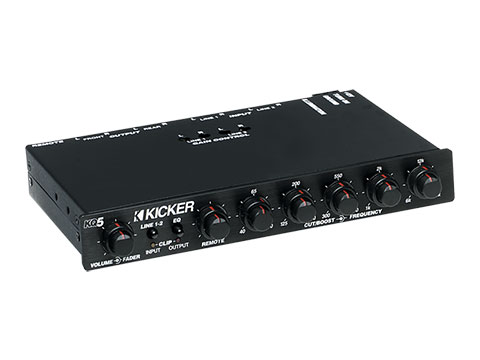

The KQ5 slices the spectrum into five bands with variable center frequencies. Cut/boost is 12dB, and output is a strong 7 volts. Two sets of inputs allow line switching, and front/rear outputs have fader control. There's even a knob that lets you control bass boost on most KICKER amps right from your dash.

The Equalizer.

The KQ5 slices the spectrum into five bands with variable center frequencies. Cut/boost is 12dB, and output is a strong 7 volts. Two sets of inputs allow line switching, and front/rear outputs have fader control. There's even a knob that lets you control bass boost on most KICKER amps right from your dash.

KQ5 Specifications
Bass
40Hz-90Hz
Lower Midrange
300Hz-750Hz
Upper Midrange
1kHz-4kHz
Treble
6kHz-20kHz
Cut/Boost
±12dB
Input Sensitivity
950mV-9.6V
Output Level
7.0Vrms
Operating Modes
Stereo/Mono
KQ5 Support

Manuals

2003 KQ5 | English | Download
