10" L7T 2 Ohm

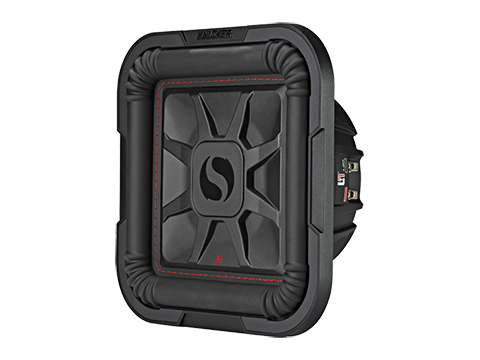

The L7T 10-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.
SoloKon™ technology uses an injection-molded polypropylene cone and 360-degree back bracing as a single solid unit - both cooling the motor and eliminating distortion. Patented ribbed corners are incorporated into the high-roll Santoprene® surround to move smoothly under high SPL. We then stitch the cone to the surround, providing an additional level of integrity that thrives no matter the application.
Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Features:
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The L7T 10-inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
Thiele/Small Parameters |
46L7T102 T/S Parameters |
Product Dimension Sheet |
46L7T10 Dimensions |
Size (IN.,CM) |
10, 25 |
Impedance (OHMS) |
2 DVC |
Recommended Amplifier Power (watts RMS) |
500 |
Peak Power (watts, per ANSI/CTA-2031-A) |
1000 |
Sensitivity (dB 1w/1m) |
85.98 |
Frequency Response (Hz) |
25-100 |
Mounting Depth (IN.,CM) |
3-3/4, 9.5 |
Mounting Cutout, Square (IN.,CM) |
9-5/16, 23.7 |
Min Rec Sealed Box Volume (CU. FT., Liters) |
0.4, 11.3 |
Max Rec Sealed Box Volume (CU. FT., Liters) |
1.0, 28.3 |
Min Rec Vented Box Volume (CU. Ft., Liters)** |
1.25, 35.4 |
Max Rec Vented Box Volume (CU. Ft., Liters)** |
1.75, 49.6 |
What's in the box? |
one 10-inch subwoofer, one owner's manual, two stickers |
Warranty |
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
