12" L7T 2 Ohm

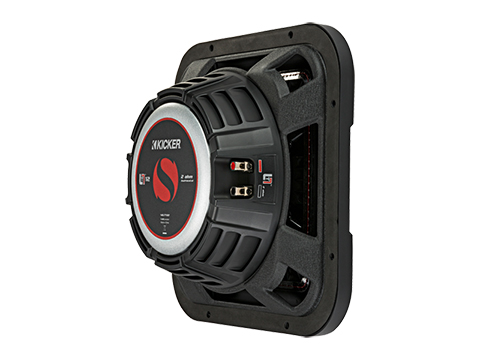

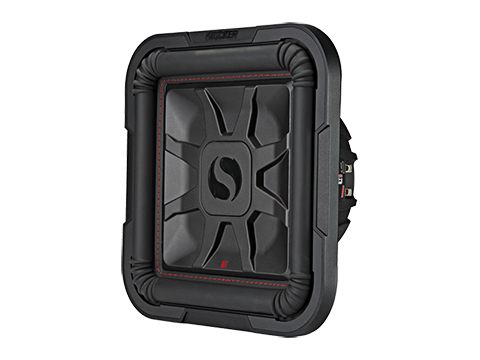

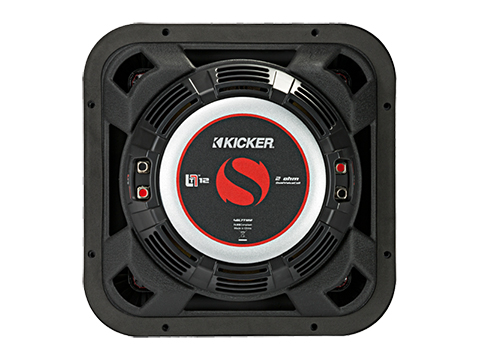

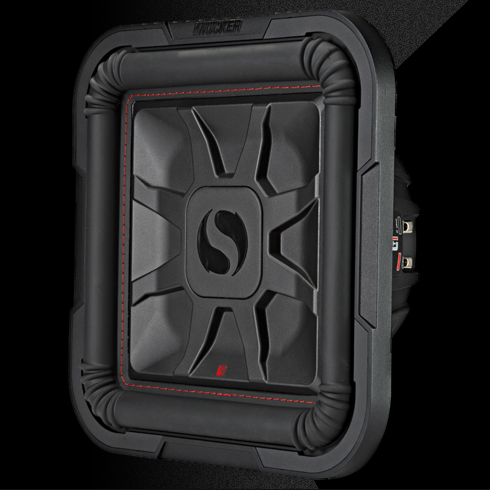

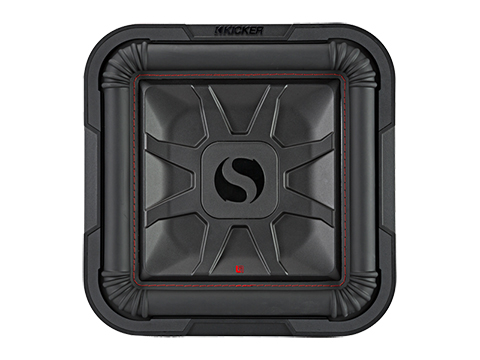

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.
Thin-mount and mean, the Solo-BaricĀ® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Features:
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
Thiele/Small Parameters |
46L7T122 T/S Parameters |
Product Dimension Sheet |
46L7T12 Dimensions |
Size (IN.,CM) |
12, 30 |
Impedance (OHMS) |
2 DVC |
Recommended Amplifier Power (watts RMS) |
600 |
Peak Power (watts, per ANSI/CTA-2031-A) |
1200 |
Sensitivity (dB 1w/1m) |
86.54 |
Frequency Response (Hz) |
25-100 |
Mounting Depth (IN.,CM) |
4-1/8, 9.5 |
Mounting Cutout, Square (IN.,CM) |
11-1/16, 28.1 |
Min Rec Sealed Box Volume (CU. FT., Liters) |
.55, 15.6 |
Max Rec Sealed Box Volume (CU. FT., Liters) |
1.25, 35.4 |
Min Rec Vented Box Volume (CU. Ft., Liters)** |
1.75, 49.6 |
Max Rec Vented Box Volume (CU. Ft., Liters)** |
2.25, 63.7 |
What's in the box? |
one 12-inch subwoofer, one owner's manual, two stickers |
Warranty |
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
