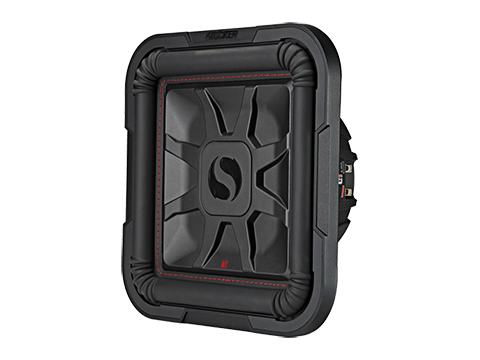

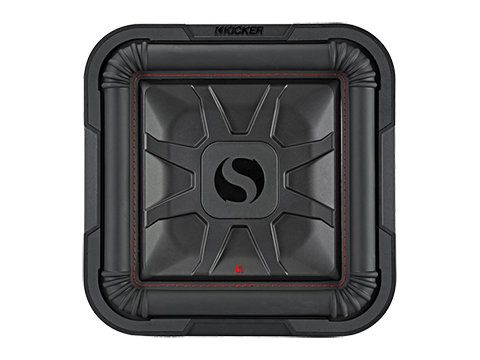

12 inch L7R front

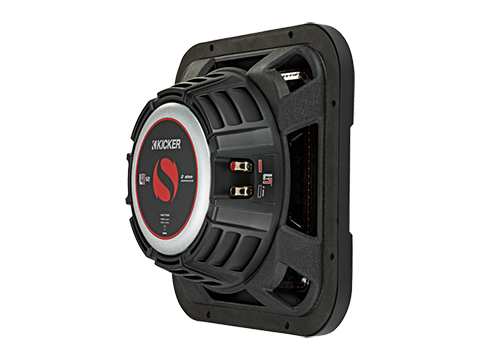

12 inch L7R back three-quarter
12 inch L7R front three-quarter

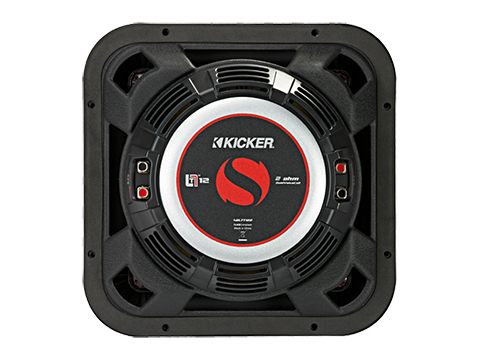

12 inch L7R back
enlarge front
enlarge back three-quarter
enlarge front three-quarter
enlarge back
12" Solo-Baric L7T 4 Ohm
The only thing thin about the L7T thin subwoofer is the mounting depth. Whether it’s on the road or trail, these tough subs work perfectly in nearly anything with a motor.

12" L7T 4 Ohm

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.

Features:

  • Uses a Sealed or Ported Enclosure
  • Square Sub Design Moves 20% More Air Than Round Subwoofers
  • Easily Mounts Under or Behind a Seat
  • Dual Voice Coil Design
  • Ribbed Santoprene Surround Resists Heat And Degrading
  • Bumped Top Plate For More Excursion & Smoother Performance
  • SoloKon™ Cone With 360-Degree Back Bracing
  • UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
  • Durable Steel Basket

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
46L7T124 T/S Parameters
Product Dimension Sheet
46L7T12 Dimensions
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.54
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
4-1/8, 9.5
Mounting Cutout, Square (IN.,CM)
11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
.55, 15.6
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.7
What's in the box?
one 12-inch subwoofer, one owner's manual, two stickers
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
