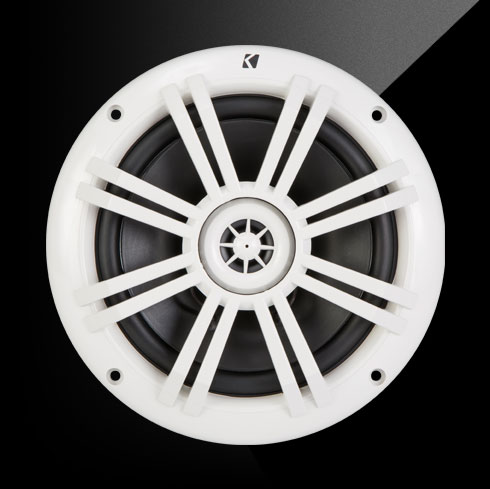

KM Coaxial front

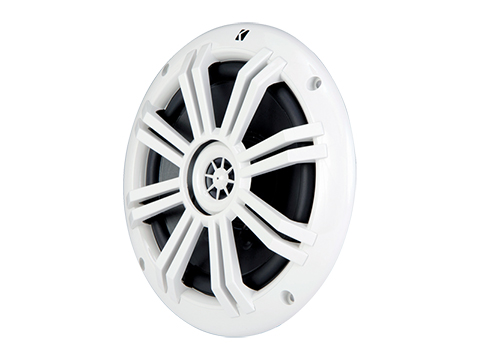

KM Coaxial left three-quarter

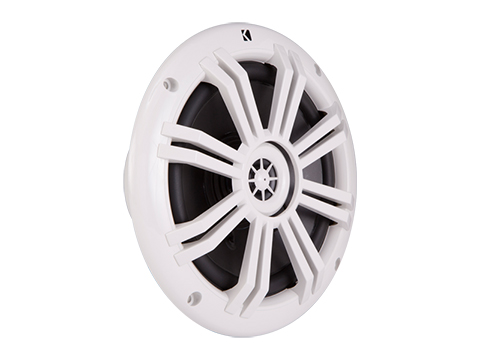

KM Coaxial right three-quarter
KM Coaxial back
enlarge front
enlarge left three-quarter
enlarge right three-quarter
enlarge back
KM 6.5" 4Ω Coaxial
KM coaxials are designed specifically for boat audio with weather-proof qualities that meet or exceed industry standards.

Simplicity

Designed for the simplest of speaker installations, it's a breeze to get live-quality, full-range audio designed specifically for a marine environment.

Spectacular Highs

Spectacular highs and midrange sounds coupled with the simplest of speaker installations, provide full-range audio specifically for a marine environment.

Maintain!

UV treatments on the coaxials' injection-molded cones, Santoprene® surrounds, baskets and grilles help all models maintain in marine environments. These speakers can endure almost any weather conditions with splash-and-spray-resisting sealed motors, cones and locking terminal covers. Speaker hardware is forged from rustproof, 316L stainless-steel.

Exceeds Industry Standards

Designed specifically for boat audio with weather-proof qualities that meet or exceed industry standards.

Specifications
Woofer(in,mm)
6-1/2, 160
Tweeter(in,mm)
1/2, 13
Tweeter Dome Material
PEI
Rated Impedance(Ω)
4
Peak Power (watts, per ANSI/CTA-2031-A)
150
Recommended Amplifier Power (watts RMS)
50
Sensitivity(1W,1m)
90
Frequency Response(Hz)
35-21k
Mounting Hole Diameter(in,mm)
5-3/16, 132
Mounting Template*

*For template to be accurate, ensure the print properties are set at 100% not scale to page.

Mounting Depth(in,mm)
2-1/2, 62
Grilles
White Only
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here.
Support

Manuals


2014 KM Coaxial Speakers | Multilingual | Download
