FULL OF FUN
KICKER and SSV Works deliver great tunes on the trail. This complete plug-and-play, five-speaker system is custom-made for your GENERAL, right down to the wiring. To get tunes to your system, an SSV Works receiver is included, delivering AM/FM and Bluetooth connectivity to two KICKER PX-Series powersports amplifiers. These weatherproof amps give you 800 watts worth of juice for plenty of volume on the trail.
For mids and highs, a set of KICKER KM-Series weather-proof speakers are mounted in a pair of custom SSV Works kick-panel enclosures. The enclosures are mounted high in the kick panel, allowing plenty of leg room during the ride. Another set of cage-mounted SSV Works speaker pods with KM speakers are mounted above the rear seats for additional volume and sound quality.
SSV Works’ unique under-dash sub enclosure is armed with a forceful KICKER 10-inch CompRT subwoofer. Made to be completely hidden yet incredibly loud, the enclosure mounts completely. You get tons of bass, and keep your storage space!

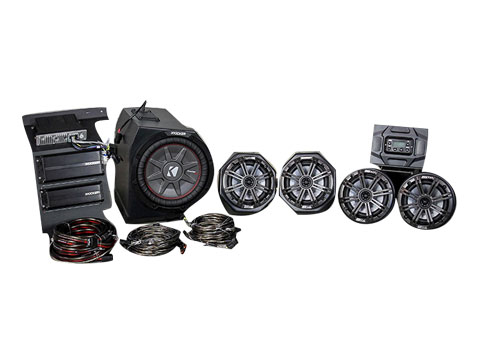

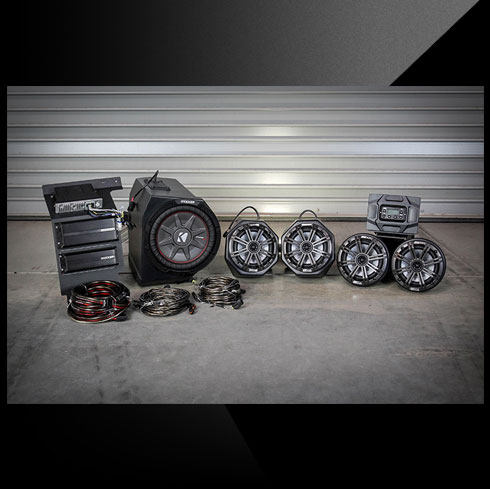

- KICKER PXA500.1 Bass Amplifier
- KICKER PXA300.4 Speaker Amplifier
- KICKER CompRT 10-Inch Thin Subwoofer
- KICKER KM65 Coaxial Speakers (2 pairs)
- SSV Works MRB3 AM/FM/Bluetooth Receiver
- SSV Works Under-Dash Subwoofer Enclosure
- SSV Works Front Kick-Panel Pods
- SSV Works Rear Cage-Mount Speaker Pods
- SSV Works Amplifier/Receiver Mounting Bracket
- SSV Works Radio Antenna
- SSV Works Power/Signal Wire
- All Mounting/Installation Hardware Included
| Compatability |
| 2016–2018 Polaris General |
| Speakers |
| Front Speakers (in, mm) |
| 6 1/2, 160 |
| Rear Speakers (in, mm) |
| 6 1/2, 160 |
| Subwoofer (in, mm) |
| 10, 25 |
| Enclosures |
| Under Seat Subwoofer |
| - |
| Under Dash Subwoofer |
| Yes |
| Kick Panel Speaker Pods |
| Yes |
| Under-Dash Speaker Pods |
| - |
| Rear Cage Speaker Pods |
| Yes |
| Speaker Amplifier |
| Channels |
| 4 |
| Max Amplifier Power (Watts peak) |
| 300 |
| Frequency Response |
| 10 – 20 kHz |
| Crossover |
| Hi/Off Selectable @ 60, 80 or 120 Hz |
| Crossover Slope |
| 24 dB/Octave |
| Subwoofer Amplifier |
| Channels |
| 1 |
| Max Amplifier Power (Watts peak) |
| 500 |
| Frequency Response |
| 25 – 120 kHz |
| Crossover |
| Low/Off Selectable @ 60, 80, 100 or 120 Hz |
| Crossover Slope |
| 24 dB/Octave |
| Receiver |
| Sources |
| Bluetooth/AUX (3.5mm input)/AM/FM/USB (1A Charging) |
| Equalizer |
| Yes (Six Presets) |
| Loudness |
| Yes |
| Bass/Treble Controls |
| Yes |
| Button Backlighting |
| Yes |
| Accessories |
| Amplifier/Radio Bracket |
| Standard |
| AM/FM Antenna |
| Standard |
| Wiring Harnesses |
| Standard |
| USB/AUX Accessory Plug |
| Standard |
