KSC270
2.75" Mid/Tweeters
2.75" Mid/Tweeters
A perfect fit with modern rides, the KICKER sound completes your in-car concert experience.
Adaptable

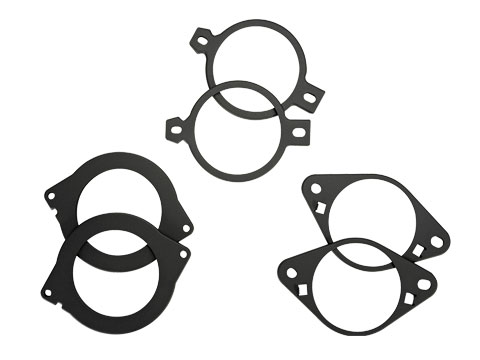

The KSC270 2-3/4” Mid/Tweeters come with three custom bracketing options, built specifically to fit in today’s GM, Chrysler, Subaru, Toyota and Jeep factory speaker locations.
KICKER KSC speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. They work best with 15 to 50 watts of recommended power. See below for more details.
- High power handling
- Rugged UV-treated cloth surrounds
- Thin-mount design easily fits behind factory grilles
- Brackets for select GM/Chrysler/Subaru/Jeep and Toyota included
Specifications
| Speaker Design |
| Midrange |
| Midrange [in, mm] |
| 2-¾, 70 |
| Rated Impedance [Ω] |
| 4 |
| Recommended Amplifier Power [Watts RMS] |
| 15-50 |
| Sensitivity [1W, 1m] |
| 85 |
| Frequency Response [Hz] |
| 300-20k |
| Mounting Hole Diameter [in, mm] |
| 3-1⁄16, 78 |
| Top Mount Depth [in, mm] |
| 1-5⁄8, 41.5 |
| Bottom Mount Depth [in,mm] |
| 1-7⁄8, 48.5 |
| Grilles |
| No |
| Woofer Cone Material |
| Treated Paper for UV resistance |
| Woofer Surround Material |
| Rubber |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here. |
What's in the Box?
| 2.75” KSC MID-RANGE TWEETER |
| Qty: 2 |
| CAPACITOR |
| Qty: 2 |
| MOUNTING SCREW |
| Qty: 4 |
| SPEED NUT |
| Qty: 4 |
| WIRE HARNESS |
| Qty: 2 |
| BUTT CONNECTOR |
| Qty: 4 |
| BLACK ADHESIVE FOR SECURING FLANGE |
| Qty: 2 |
| GM/CHRYSLER FLANGE |
| Qty: 2 |
| GM/CHRYSLER RETAINER |
| Qty: 2 |
| JEEP FLANGE |
| Qty: 2 |
| JEEP RETAINER |
| Qty: 2 |
| SUBARU/TOYOTA FLANGE |
| Qty: 2 |
| SUBARU/TOYOTA RETAINER |
| Qty: 2 |
