Center Stage

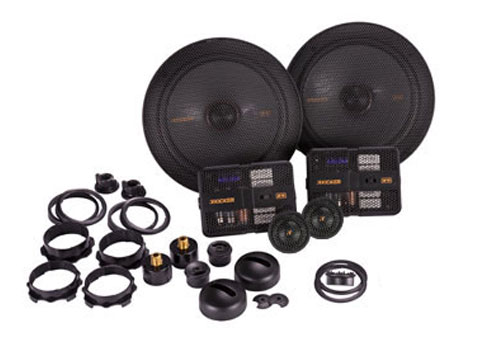

KICKER KS-Series Speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.
Experience your music as a component system with separate tweeters, or as a high-end coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.
Woofer [in, mm] |
6-¾, 165 |
Tweeter [in,mm] |
1, 25 |
Dome Material |
Silk |
Rated Impedance [Ω] |
4 |
Recommended Amplifier Power [Watts RMS] |
15-125 |
Sensitivity [1W, 1m] |
91 |
Frequency Response [Hz] |
35-21k |
Woofer Mounting Hole Diameter [in, mm] |
5-9⁄16 , 141 |
Woofer Bottom Mount Depth [in, mm] |
1-13⁄16 , 46 |
Flush Mount Tweeter Hole Diameter [in,mm] |
1-¾, 45 |
Flush Mount Tweeter Depth [in,mm] |
11⁄16 , 17 |
High Pass [dB], at Frequency [Hz] |
12, 4,000 |
Low Pass [dB], at Frequency [Hz] |
none |
High Frequency Output Attenuation [dB] |
0, 4.5, 9 |
Warranty |
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here. |
Manuals
2020 KS Series | Download
Installation Guide | Download
