Model: 50CWCD84

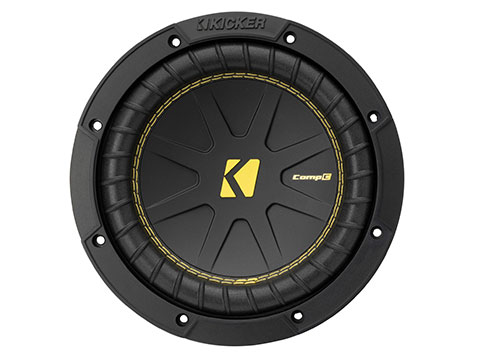

8" CompC 4 Ohm DVC
The dual-voice-coil CompC Subwoofers make wiring easy with a pair of spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features:
- Dual Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The CompC 8-Inch Subwoofer works best with a sealed or ported enclosure and 200 watts of recommended power. See below for more details.
| Thiele/Small Parameters |
| 50CWCD84 T/S Parameters |
| Product Dimension Sheet |
| 50CWCD8 Dimensions |
| Size [in, cm] |
| 8, 20 |
| Impedance [OHMS] |
| 4 DVC |
| Peak Power [watts, per ANSI/CTA-2031-A] |
| 400 |
| Recommended Amplifier Power [watts RMS] |
| 100-200 |
| Frequency Response [Hz] |
| 30-500 |
| Sensitivity [dB 1w/1m] |
| 83.6 |
| Mounting Depth [in, cm] |
| 4-3/16, 10.5 |
| Mounting Diameter [in, cm] |
| 6-15/16, 17.7 |
| Max Rec Sealed Box Vol [cu. ft, liters |
| 1.2, 34 |
| Min Rec Sealed Box Vol [cu. ft, liters |
| 0.5, 14.2 |
| Max Rec Vented Box Vol [cu. ft, liters) |
| 1.2, 34 |
| Min Rec Vented Box Vol [cu. ft, liters] |
| 0.66, 18.7 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
