Model: 50CWCS154
15" CompC 4 Ohm SVC
The single-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features:
- Single Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

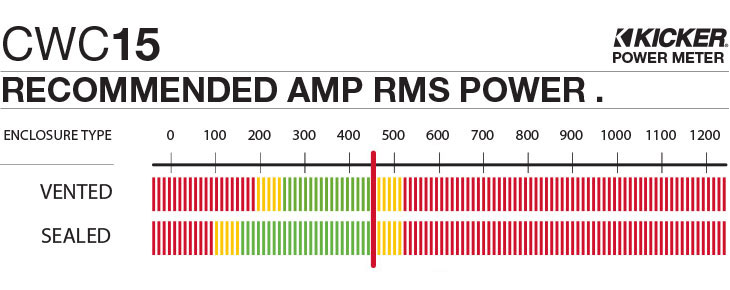

*The CompC 15-inch Subwoofer works best with a sealed or ported enclosure and 450 watts of recommended power. See below for more details.
| Thiele/Small Parameters |
| 50CWCS154 T/S Parameters |
| Product Dimension Sheet |
| 50CWCS154 Dimensions |
| Size [in, cm] |
| 15, 38 |
| Recommended Amplifier Power [watts RMS] |
| 225-450 |
| Peak Power Handling [watts, per ANSI/CTA-2031-A] |
| 900 |
| Sensitivity [dB 1w/1m] |
| 89.2 |
| Rated Impedance [OHMS] |
| 4 SVC |
| Fs [Hz] |
| 30.7 |
| Frequency Response [Hz] |
| 25-500 |
| Outer Frame Dimension [in, cm] |
| 15-1/2, 39.3 |
| Mounting Depth [in, cm] |
| 7-3/8, 18.7 |
| Mounting Cutout [in, cm] |
| 13-3/4, 35 |
| Max Rec Sealed Box Vol [cu. ft, liters |
| 5, 141.6 |
| Min Rec Sealed Box Vol [cu. ft, liters |
| 2.25, 63.7 |
| Max Rec Vented Box Vol [cu. ft, liters) |
| 4, 113.3 |
| Min Rec Vented Box Vol [cu. ft, liters] |
| 3, 85 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
