CS Speaker front

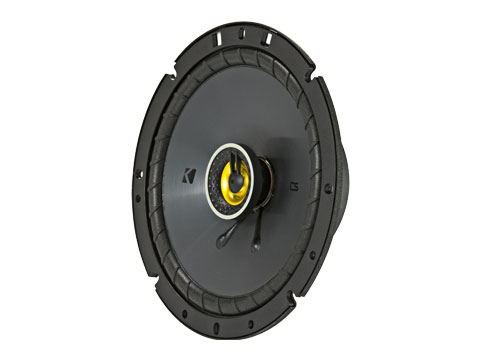

CS Speaker three-quarter

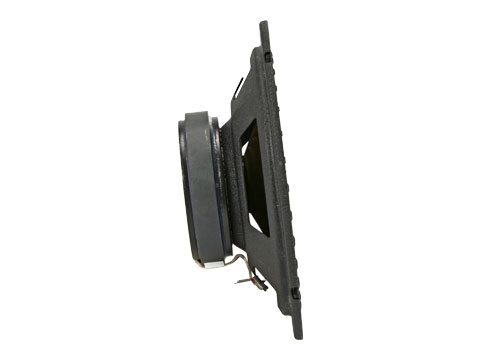

CS Speaker side
CS Speaker back
enlarge front
enlarge three-quarter
enlarge side
enlarge back
CS Series CSC67
The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

CS Series CSC67

CS-Series 6-3/4-inch Coaxial Speakers are the perfect way to upgrade your factory speakers.

CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. The stamped-steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

These CS speakers work best with 100 watts of recommended power. See below for more details.

  • Fits nearly every car made
  • Zero-protrusion tweeters to fit nearly any factory depth
  • Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
  • UV-treated poly-foam surround resists heat or direct sunlight
  • Large woofer magnet in a heavy-duty motor for ultra-clean bass
  • PEI-tweeter construction provides superb clarity
  • Neodymium tweeter magnets allow for increased volume in high frequencies
  • Steel mesh grilles included for speaker protection
Specifications
Speaker Design
2 - way
Woofer Size [ in, mm ]
6 3/4, 165
Tweeter Size [ in, mm ]
1/2, 13
DC Resistance [ ohm ]
3.3
Peak Power [ watts, per ANSI/CTA-2031-A ]
300
Recommended Amplifier Power [ watts RMS ]
100
Sensitivity - SPLo [ dB @ 1W, 1m ]
90
Effective Frequency Range [ Hz ]
40-20k
Mounting Hole Diameter [ in, mm ]
5 1/2, 140
Top Mount Depth [ in, mm ]
1 13/16, 47
Bottom Mount Depth [ in, mm ]
2 1/16, 51
Tweeter Protrusion [ in, mm ]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Materia
PEI [polyether imide
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
