CompC 12 Inch Subwoofer

12" CompC 4 Ohm SVC

Perimeter venting keeps the air free-flowing around the motor structure. With a KICKER sub that doesn’t overheat, you get high-performance bass that keeps the music pounding.

Features:

Four-Ohm Voice Coil
Injection-Molded Polypropylene Cone
Perimeter Venting for Thermal Management
Ribbed Polyurethane Surround
Signature Yellow Surround Stitching
High-Strength Spiralead™ Tinsel Leads
Stamped Steel Basket
High Temp Voice Coil
Spring-Loaded Speaker Terminals

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

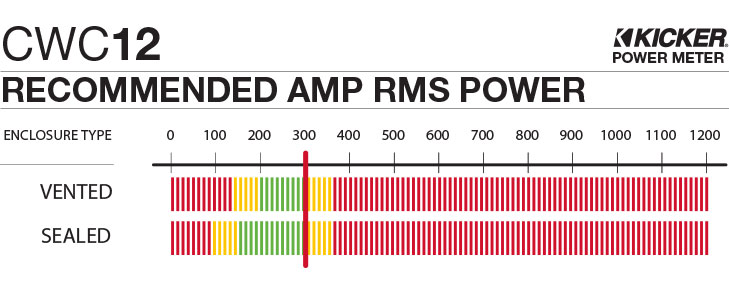

*The CompC 12-Inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters

44CWCS124 T/S Parameters

Size (IN.,CM)

12, 30

Impedance (OHMS)

4 SVC

Recommended Amplifier Power (watts RMS)

300

Peak Power (watts, per ANSI/CTA-2031-A)

600

Sensitivity (dB 1w/1m)

88.3

Frequency Response (Hz)

27-500

Mounting Depth (in, cm)

5-3/8, 13.6

Mounting Cutout (in, cm)

11, 27.9

Min Sealed Box Vol (cu. ft, L)

1.25, 35.4

Max Sealed Box Vol (cu. ft, L)

3.5, 99.1

Min Vented Box Vol (cu. ft, L)

1.75, 49.6

Max Vented Box Vol (cu. ft, L)

2.25, 63.7

Warranty

When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
