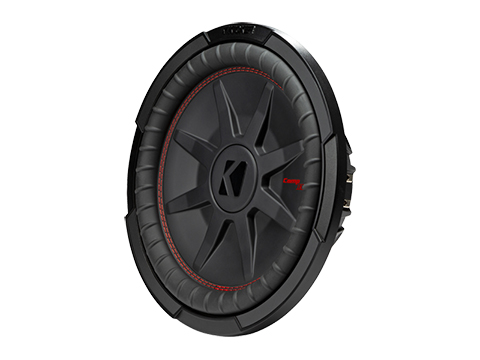

10 inch CompRT left three-quarter
10 inch CompRT right three-quarter
10 inch CompRT back
enlarge front
enlarge left three-quarter
enlarge right three-quarter
enlarge back
12" CompRT 4 Ohm
model: 48CWRT124
The CompRT line of ultra-thin subwoofers fits under your seat or behind your back bench with ease. Now even more efficient and sporting a slick, blacked-out cone, the CompRT® gives you all the bass in very little space!

12" CompRT 4 Ohm

The CompRT 12-inch Subwoofer is an all-weather thin subwoofer with a pair of 4-Ohm voice coils. With a mounting depth under four inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. A UV-resistant cone and surround help make the CompRT sound great wherever the road (or trail) takes you.

A thick magnet structure reliably delivers huge power handling without affecting mounting depth. The specially designed UniPlate™ back plate and solid pole piece serve as a single heat-absorbing unit to provide excellent thermal management. With our custom SoloKon™ technology and the CompRT’s unique framework, the sub sounds fat – but keeps it thin! To make our subs even more reliable, KICKER engineers developed Forced-Air Cooling™ to help our subs run 20 percent cooler than before.

The CompRT 12-inch Subwoofer works best with a sealed enclosure and 500 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
48CWRT124 T/S Parameters
Product Dimension Sheet
48CWRT12 Dimensions
SIZE [in, cm]:
12, 30
IMPEDANCE [Ohms]:
4 DVC
Recommended Amplifier Power (watts RMS)
500
Peak Power (watts, per ANSI/CTA-2031-A)
1000
SENSITIVITY [dB 1w/1m]:
85.5
MOUNTING DEPTH [in, cm]:
3-3/4,9.6
MOUNTING DIAMETER [in, cm]:
11, 27.9
MIN SEALED BOX VOL [cu. ft, L]:
0.55, 15.57
MAX SEALED BOX VOL [cu. ft, L]:
2.0, 56.64
MIN VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]:
2.25, 63.7
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
