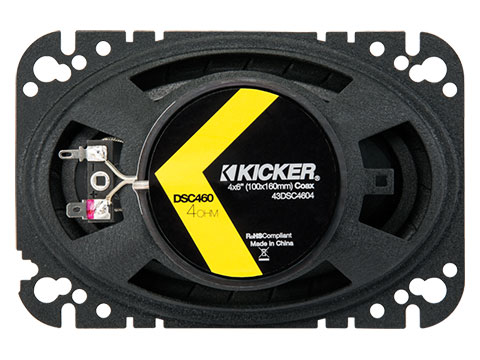

DS Speaker back
enlarge front
enlarge three-quarter
enlarge side
enlarge back
DS Series 4x6" Coax
A drop-in coaxial upgrade with the flexibility to fit nearly any vehicles doors for a vast improvement over factory sound.

DS Series 4x6" Coax

The DS 4x6-Inch Coaxial Speakers are a great way to get top-notch sound in your doors.

Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles.

These DS speakers work best with 30 watts of recommended power. See below for more details.

Specifications
Model
DSC460
Speaker Design
2 - Way
Woofer [in, mm]
4x6, 100x160
Mid [in, mm]
n/a
Tweeter [in, mm]
1/2, 13
Rated Impedance [Ω]
4
Peak Power (watts, per ANSI/CTA-2031-A)
120
Recommended Amplifier Power (watts RMS)
30
Sensitivity [1W, 1m]
88
Frequency Response [Hz]
50-20k
Mounting Hole Diameter [in, mm]
4x6, 101x152
Top Mount Depth [in, mm]
1 11/16, 43
Bottom Mount Depth [in, mm]
2, 50
Tweeter Protrusion [in, mm]
0
Grilles
No
Tweeter Magnet Material
Neodymium
Tweeter Dome Material
PEI (polyether imide)
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
Support

Manuals


2016 DS Coaxials | Multilingual | Download
