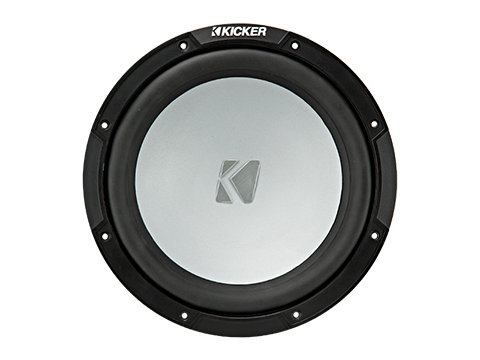

Marine Subwoofer front

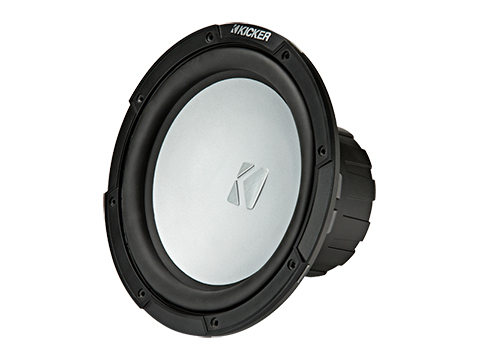

Marine Subwoofer left three-quarter

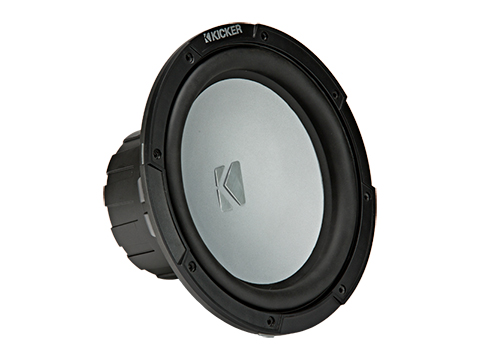

Marine Subwoofer right three-quarter

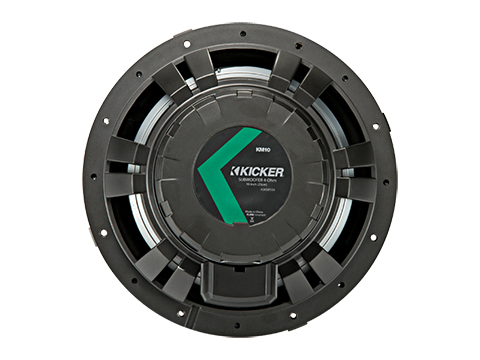

Marine Subwoofer back
enlarge front
enlarge left three-quarter
enlarge right three-quarter
enlarge back
10" 2Ω Marine Subwoofer
The KICKER® KM 10-inch Marine Subwoofer is made to work perfectly in a sealed or ported enclosure.

ABOUT THAT BASS

Packed with features and made for marine, KICKER gives you the deep, loud bass your boat needs with KM subs.

FEATURES

  • Two-Ohm Voice Coil
  • Injection-Molded Polypropylene Cone
  • Co-molded Santoprene® Surround
  • UniPlate™ Back Plate And Pole Piece
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Polymer Basket Resists Corrosion
  • Protective Terminal Cap
  • Stainless Mounting Hardware Included
  • Meets or Exceeds ASTM Standards for UV and Salt/Fog Exposure
    (ASTM B117 200 hr. Salt Fog Test) (ASTM G154 400 hr. Accelerated UV Test)

Want setup help? Go to KICKERU for a free woofer and amplifier configuration app!
*The KM 10-inch Subwoofer works best with a sealed or ported enclosure and 175 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
TS Parameters PDF link 45KM102 T/S Parameters PDF
Product Dimension Sheet
45KM10 Dimensions
Woofer(in,mm)
10, 25
Impedance (OHMS)
2 SVC
Peak Power (watts, per ANSI/CTA-2031-A)
350
Recommended Amplifier Power (watts RMS)
175
Sealed Enclosure Volume Min-Max(ft³, L)
1-2.4, 28.3-68
Vented Enclosure Volume Min-Max(ft³, L)
1.25-1.75, 35.4-49.6
Frequency Response(Hz)
30-500
Mounting Depth(in, cm)
5, 12.7
Hole Diameter(in, cm)
9-3/16, 23.2
Outer Diameter(in, cm)
10-11/16, 27.1
What's in the Box:
1 - 10" Woofer
1 - Back gasket
8 - Mounting screws
8 - Mounting screw clips
1 - Manual
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
