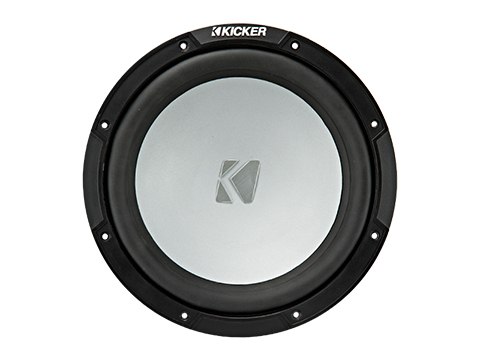

Marine Subwoofer front

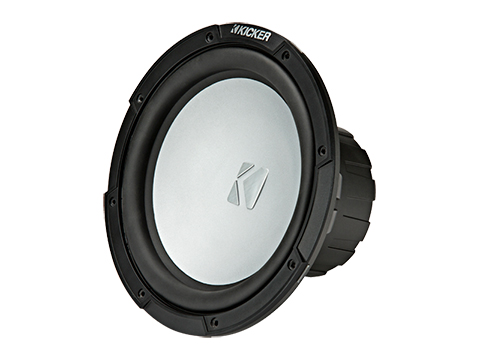

Marine Subwoofer left three-quarter

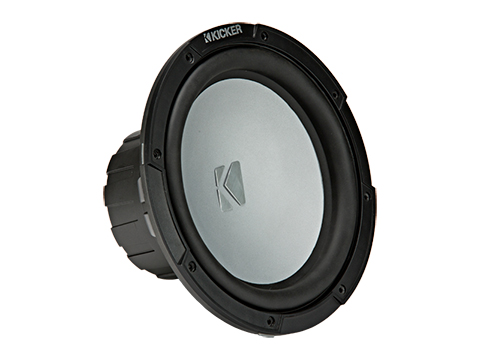

Marine Subwoofer right three-quarter

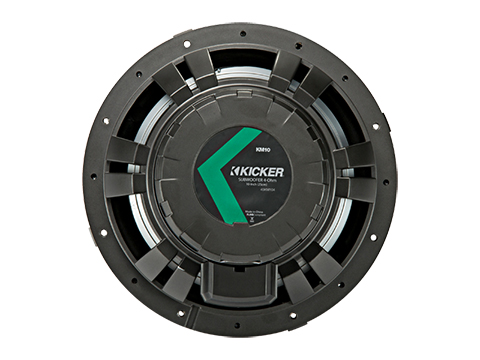

Marine Subwoofer back
enlarge front
enlarge left three-quarter
enlarge right three-quarter
enlarge back
10" 4Ω Marine Subwoofer
The KICKER® KM 10-inch Marine Subwoofer makes waves of its own in a sealed or ported enclosure. Made to take the power and the weather, this sub is custom made to bang in your boat.

MAKIN' WAVES

Packed with features and made for specifically for marine use, KICKER gives you the deep, loud bass your boat needs.

FEATURES

  • Four-Ohm Voice Coil
  • Injection-Molded Polypropylene Cone
  • Co-molded Santoprene® Surround
  • UniPlate™ Back Plate And Pole Piece
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Polymer Basket Resists Corrosion
  • Protective Terminal Cap
  • Stainless Mounting Hardware Included
  • Meets or Exceeds ASTM Standards for UV and Salt/Fog Exposure
    (ASTM B117 200 hr. Salt Fog Test) (ASTM G154 400 hr. Accelerated UV Test)

Want setup help? Go to KICKERU for a free woofer and amplifier configuration app!
*The KM 10-inch Subwoofer works best with a sealed or ported enclosure and 175 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
TS Parameters PDF link 45KM104 T/S Parameters PDF
Product Dimension Sheet
45KM10 Dimensions
Woofer(in,mm)
10, 25
Impedance (OHMS)
4 SVC
Peak Power (watts, per ANSI/CTA-2031-A)
350
Recommended Amplifier Power (watts RMS)
175
Sealed Enclosure Volume Min-Max(ft³, L)
1-2.4, 28.3-68
Vented Enclosure Volume Min-Max(ft³, L)
1.25-1.75, 35.4-49.6
Frequency Response(Hz)
30-500
Mounting Depth(in, cm)
5, 12.7
Hole Diameter(in, cm)
9-3/16, 23.2
Outer Diameter(in, cm)
10-11/16, 27.1
What's in the Box:
1 - 10" Woofer
1 - Back gasket
8 - Mounting screws
8 - Mounting screw clips
1 - Manual
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
