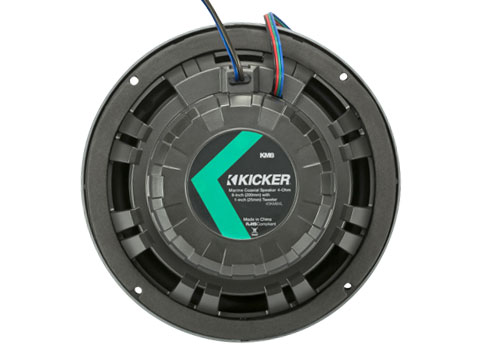

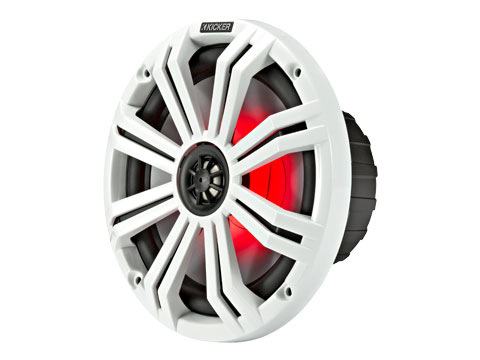

KM 8" 4Ω LED Coaxial
Loud and clear, the KM Coaxial Marine Speakers are built to pump out the tunes – and the fun - for years to come! Whether you mount your speakers in the hull or in KICKER® tower enclosures, you also get a pair of stout marine-grade grilles!

LIGHT IT UP

Our speakers are made to thrive in the water. UV treatments on injection-molded cones, Santoprene® surrounds, baskets and grilles all help maintain top-shelf performance. KM speakers will endure almost any weather conditions with splash-and-spray-resistant sealed motors, cones and Locking/Sealed Terminal Covers. Speaker hardware is forged from rustproof, 316L stainless-steel.

  • Four-Ohm Voice Coil
  • One-Inch Titanium Tweeter
  • UV-Treated Polypropylene Woofer With Santoprene® Surround
  • UV-Resistant Polymer Basket
  • Locking/Sealed Terminal Cover
  • Sealed Motor Structure
  • 316L Stainless Mounting Hardware Included
  • White and Charcoal Grilles With Seven-Color LED System Included*
  • Meets or Exceeds ASTM Standards for UV** and Salt/Fog Exposure***
    **ASTM B117 200 hr. Salt Fog Test
    ***ASTM G154 400 hr. Accelerated UV Test

*Upgradable to 20 Colors and 19 Lighting Modes with KMLC

This KM Eight-Inch Coaxial Speaker works best with 150 watts of recommended power.

Specifications
Woofer(in,mm)
8, 200
Tweeter(in,mm)
1, 25
Tweeter Dome Material
Titanium
Rated Impedance(Ω)
4
Peak Power (watts, per ANSI/CTA-2031-A)
300
Recommended Amplifier Power (watts RMS)
150
Sensitivity(1W,1m)
92
Frequency Response(Hz)
30-21k
Mounting Hole Diameter(in,mm)
6-9/16, 170
Mounting Template*

*For template to be accurate, ensure the print properties are set at 100% not scale to page.

Mounting Depth(in,mm)
3-5/16, 82.9
LED Lighting
Yes
Grilles
Charcoal and White
What's in the Box:
2 - 8" 4Ω Coaxials
8 - Mounting Screws
8 - Mounting Screw Clips
2 - Wire Connection Cover
2 Zip Ties
Support

Manuals


2018 KM Coaxials Manual: Download
