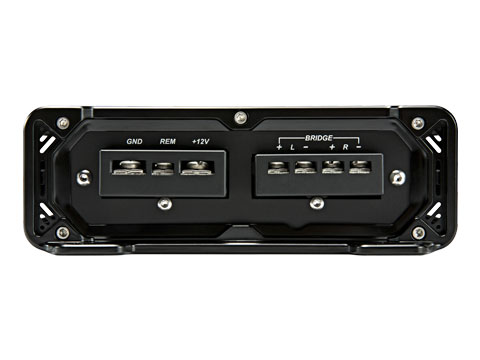

Connections

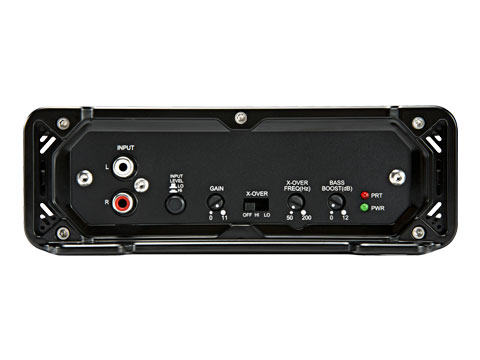

Controls

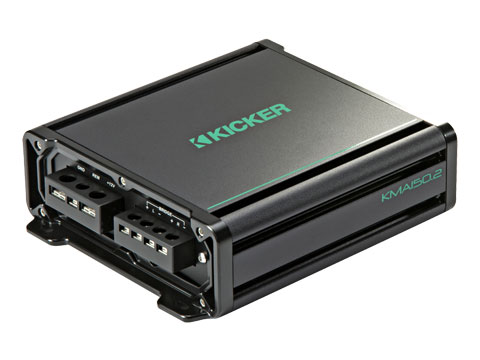

KMA Amplifier three-quarter
enlarge amplifier
enlarge connections
enlarge controls
enlarge three-quarter

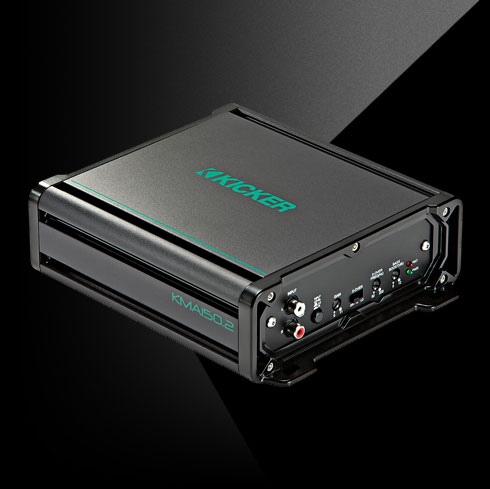

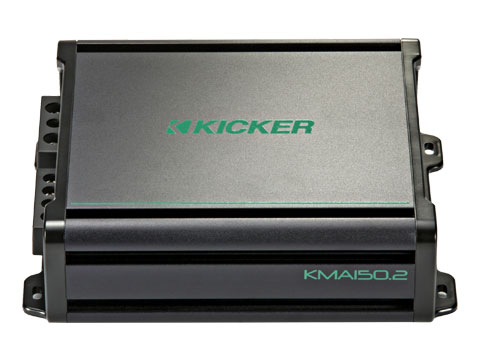

KMA150.2 Amplifier
Big sound meets big value. Use this flexible two-channel KM marine amplifier to power your system with ease and pump up the sound like only KICKER can!

FULL RANGE FUN

Using Class A/B power, this amp features a variable bass boost with KickEQ™, giving you as much as a 12dB of extra bump. A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.

  • Class A/B Power Supply
  • Stereo Amplifier With Bridging Capability
  • Conformal-Coated Circuit Board
  • Variable 12dB Crossover
  • KickEQ™ Variable 12dB Bass Boost
  • ABYC/NMMA-Compliant Power Connections
  • 316L Stainless-Steel Hardware Included

Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

This KM-Series amplifier delivers as much as 75 watts into two channels, or 150 watts bridged into one channel. See below for more details.

Specifications
POWER [watts/ch], 2 OHM STEREO
75 x 2
POWER [watts/ch], 4 OHM BRIDGED MONO:
150 x 1
POWER [watts/ch], CLASS D 2 OHM MONO:
n/a
KM REMOTE CAPABLE (sold separately):
No
DIMS [in] 2-5/16H x 7-1/8W x ...L
8-1/16
DIMS [cm] 5.9H x 18.0W x ...L
20.5
FREQUENCY RESPONSE [Hz]:
10-20k, +0/-1dB
INPUT SENSITIVITY:
High Level 250mV-10V, Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO:
>95dB, a-weighted, re: rated power
ACTIVE CROSSOVER:
12dB/octave, variable 50-200Hz, selectable high pass, low pass or all pass
SUBSONIC FILTER
n/a
KickEQ™ BOOST
Variable to +12dB, centered @ 40Hz
What's in the Box:
1 - power amplifier
1 - user manual, mounting hardware
