FLAT MOUNT

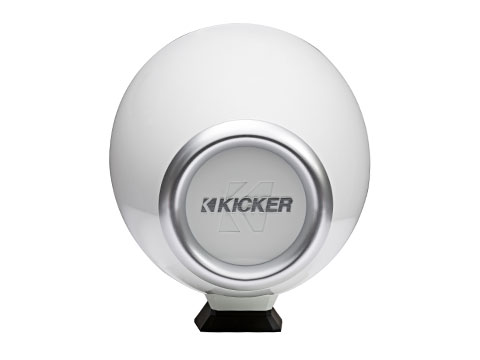

KMFC Flat-Surface-Mount Cans feature the same materials and performance as the KMTC series, made specifically for installation on a flat surface. Use one or two of the provided inserts to install the KMFC in any one of four configurations – either flat or angled, pitched up or down 5° or 10°.
- Four-Ohm Voice Coil
- One-Inch PEI Tweeter
- UV-Treated Polypropylene Woofer With Santoprene® Surround
- UV-Resistant Polymer Basket
- Through-Mount Wiring System
- 316L Stainless Mounting Hardware Included
- Grille With Seven-Color LED System Included*
- Meets or Exceeds ASTM Standards for UV** and Salt/Fog Exposure***
*Upgradable to 20 Colors and 19 Lighting Modes with KMLC.
**ASTM G154 400 hr. Accelerated UV Test
***ASTM B117 200 hr. Salt Fog Test
The KMFC Eight-Inch Coaxial Tower System works best with 150 watts of recommended power.
Adjustable Logo
On all KMFC, KMTC and KMTE products the logo is manually adjustable to 180 degrees.
| Woofer (in, cm) |
| 8, 20 |
| Tweeter (in, cm) |
| 1, 2.5 |
| Tweeter Dome Material |
| PEI |
| Rated Impedance (ohms) |
| 4 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 300 |
| Recommended Amplifier Power (watts RMS) |
| 150 |
| Sensitivity (1W, 1m) |
| 92 |
| Frequency Response (Hz) |
| 30-21k |
| Height (in, cm) |
| 9-7/16, 24 |
| Diameter (in, cm) |
| 8-3/16, 20.7 |
| Depth (in, cm) |
| 11-5/16, 28.6 |
| LED Lighting |
| Yes |
| What's in the Box: |
| 2 - full-range speaker enclosures mounting hardware |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here. |
