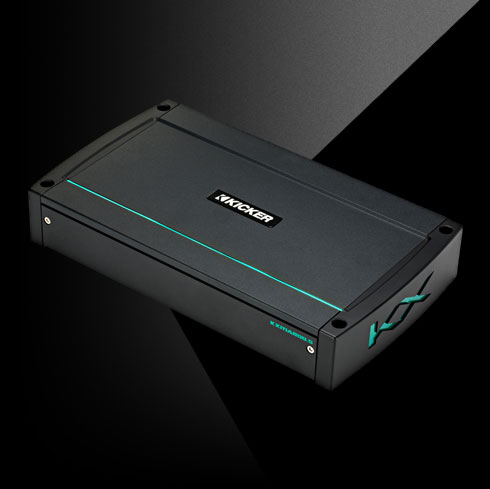

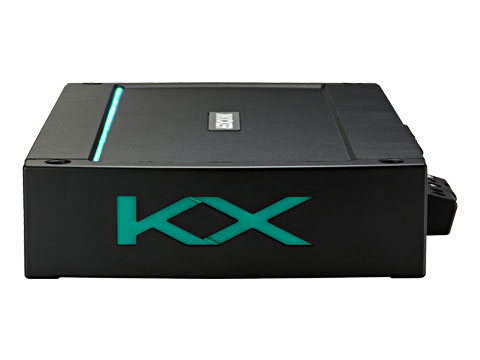

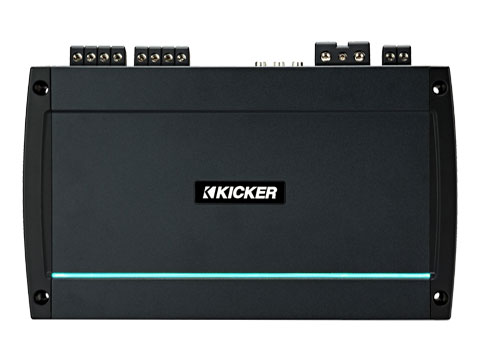

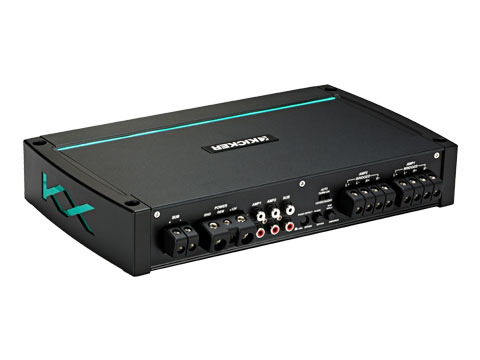

KXMA800.5 Amplifier
The KICKER® KXM five-channel amp delivers power and performance anywhere you cruise.

KXMA800.5 Amplifier

The KXM 800-watt five-channel amplifier is a full system in a single package. KickEQ+™ delivers an enormous 18dB of variable bass boost while a powerful 24dB crossover lets you quickly tune and tweak your sound. A revolutionary illuminated clip indicator is built right into the gain knob to get the most power without distorting the signal.

A wireless controller is also included for perfecting your sound on the fly. Monitor and adjust gain, bass boost, clipping and more without leaving the driver's seat!

Features:

  • Class D Power Plant
  • 2-Ohm Stable Bass Channel
  • SHOCwave™ Bass Restoration Processor
  • KXARC Wireless Remote Included
  • Gain Control With "Optimal Input" Indicator
  • Variable 24dB Subsonic Filter
  • FIT2™ (Fail-Safe Integration Technology) Circuitry
  • Variable 24dB Crossover
  • DSP-Controlled Preamp
  • KickEQ+™ 18dB Variable Bass Boost
  • ABYC/NMMA Compliant Power Terminals
  • Conformal-Coated Circuit Boards
  • Easy Access to Settings behind Gasket-Sealed Cover Panel
  • Black Anodized Aluminum Chassis
  • Top-Mounted Teal LED Light Pipe
  • Stainless Steel Mounting Hardware Included

Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

This KXM amplifier delivers as much as 100 watts into four full range channels, or 200 watts into two sets of bridged channels. A separate subwoofer channel delivers as much as 400 watts. See below for more details.

Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N: 50 x 4
@ 14.4V, 2Ω stereo, ≤ 1% THD+N: 100 x 4
@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 200 x 2
Sub Channel RMS Power [Watts]
@ 14.4V, 4Ω mono, ≤ 1.5% THD+N: 200 x 1
@ 14.4V, 2Ω mono, ≤ 1.5% THD+N: 400 x 1
@ 14.4V, 1Ω mono, ≤ 1% THD+N : +/- 10%
Length [in, cm]
12-¾, 32.4
Height [in, cm]
2-⅛, 5.5
Width [in, cm]
8-516, 21
Frequency Response [Hz]
AMPS 1 - 2: 10Hz–20kHz
SUB: 10Hz-160Hz
Signal-to-Noise Ratio [dB]
95
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
AMP 1: OFF/HP/LP, variable 10–5,000Hz with 10X switch;
24dB/octave
AMP 2: OFF/HP/LP/BP, variable HP 10–5,00Hz,
variable LP 40–5,000Hz with 10X switch; 24dB/octave
SUB: Variable LP 40–160Hz; 24dB/octave
Subsonic Filter
(amp1) 24dB/octave, variable 10-500Hz, selectable high pass, low pass or all pass, w/10x switch; (amp2) 24dB/octave, variable high pass 10-500Hz, variable low pass 40-500Hz, selectable high pass, low pass, all pass or band pass, w/10x switch for lo pass; (KX.5 sub channel) 24dB/octave, variable 40-160Hz, low pass only
Subsonic Filter:
Variable 10–80Hz, 24dB/octave
KickEQ+™ Parametric Bass Boost
(Remote Control Adjustable)
Boost - Variable 0-18db
Center Frequency-20Hz-80Hz
Bandwidth 1-5
Remote Bass
Yes
CEA Power
50W x 4 @ 4 ohms (10Hz–20,000Hz)
200W x 1 @ 4 ohms (40Hz–160Hz)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
