KXMA Amplifier

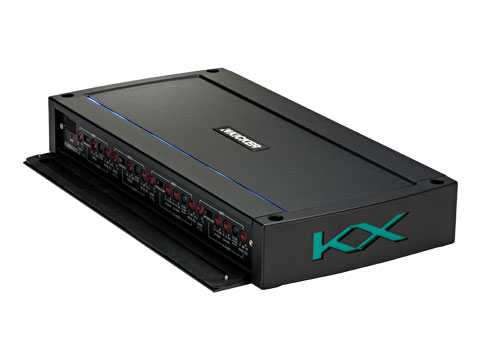

Controls

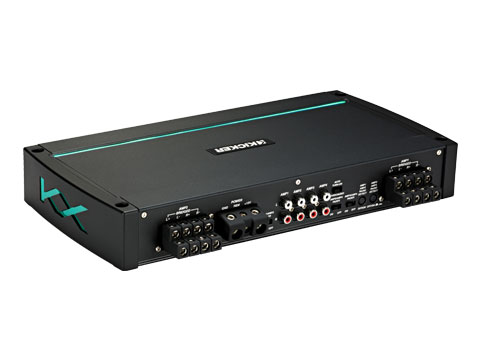

Conections

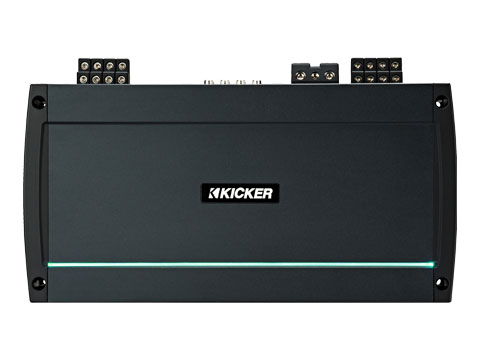

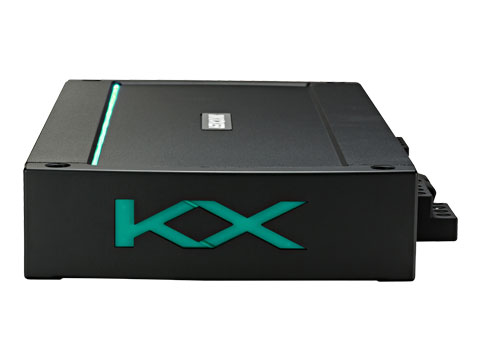

KXMA Amplifier side
enlarge amplifier
enlarge controls
enlarge connections
enlarge side
KXMA800.8 Amplifier
This KXM eight-channel amplifier gives you the flexibility is the name of the game, and with eight powerful channels to play with, your boat will be the winner!

KXMA800.8 Amplifier

The KXM 800-watt eight-channel amplifier is one of the most flexible marine power plants available today.

Using powerful Class D technology, this KickEQ+™ delivers as much as an 18dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.

Features:

  • Class D Power Plant
  • Gain Control With "Optimal Input" Indicator
  • FIT2™ (Fail-Safe Integration Technology) Circuitry
  • Variable 24dB Crossover
  • DSP-Controlled Preamp
  • KickEQ+™ 18dB Variable Bass Boost
  • ABYC/NMMA Compliant Power Terminals
  • Conformal-Coated Circuit Boards
  • Easy Access to Settings behind Gasket-Sealed Cover Panel
  • Black Anodized Aluminum Chassis
  • Top-Mounted Teal LED Light Pipe
  • Stainless Steel Mounting Hardware Included

Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

This KXM amplifier delivers as much as 100 watts per channel (8 channels driven), or 200 watts into four sets of bridged channels. See below for more details.

Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N: 50 x 8
@ 14.4V, 2Ω stereo, ≤ 1% THD+N: 100 x 8
@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 200 x 4
Length [in, cm]
14-¾, 37.4
Height [in, cm]
2-⅛, 5.5
Width [in, cm]
8-516 , 21
Frequency Response [Hz]
10Hz–20kHz
Signal-to-Noise Ratio [dB]
95
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
Amp 1 and Amp 2: OFF/HP/LP
Variable 10–5,000Hz with X10 switch
Amp 3 and Amp 4: OFF/HP/LP/BP
Variable HP, 10–500Hz
Variable LP, 40–5,000Hz with 10X switch
Slope: 24dB/octave
KickEQ+™ Bass Boost
0-18dB @ 40Hz
CEA Power
50 x 8 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Support

Manuals


2017 KXM 8-Channel Amplifier | Multilingual | Download
