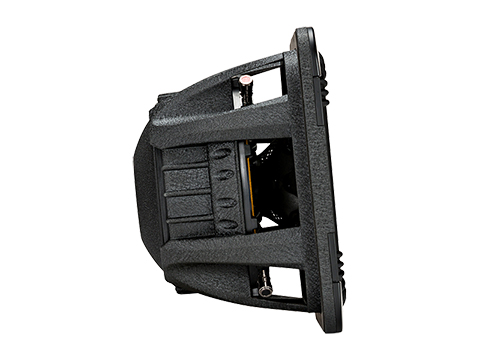

10 inch L7S side

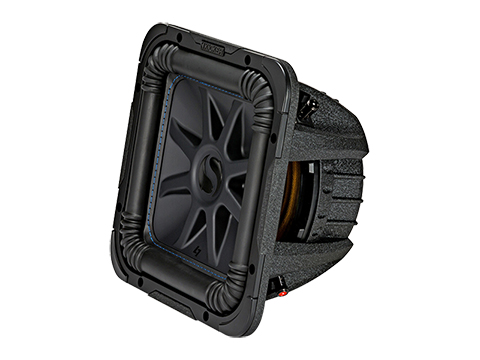

10 inch L7S three-quarter
10 inch L7S back
enlarge front
enlarge side
enlarge three-quarter
enlarge back
10" Solo-Baric L7S 4 Ohm
The KICKER® Solo-Baric® L7S™ is the original square sub. It handles plenty of power with special thermal management systems. You get tons of bass without distortion or compromising on sound quality.

model: 44L7S104

Square Matters

The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer.

Features:

  • Dual Four-Ohm Voice Coils
  • Injection-Molded Polypropylene Cone
  • Patented Corner Ribs Minimize Distortion
  • SoloKon™ 360-Degree Back Bracing
  • Ribbed Santoprene Surround With Blue Surround Stitching
  • UniPlate&trde; Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Cast Aluminum Basket
  • Satin-Nickel Plated, Spring-Loaded Speaker Terminals

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The Solo-Baric L7S 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
44L7S104 T/S Parameters
Product Dimension Sheet
44L7S104 Dimensions
Size (IN.,CM)
10, 25.4
Impedance (OHMS)
4 DVC
Recommended Amplifier Power (watts RMS)
600
Peak Power (watts, per ANSI/CTA-2031-A)
1200
Sensitivity (dB 1w/1m)
86.8
Frequency Response (Hz)
24-100
Mounting Depth (IN.,CM)
6-1/4, 15.9
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
1.0, 28.32
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.8
What's in the box?
one 10-inch subwoofer, one owner's manual, two stickers
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
