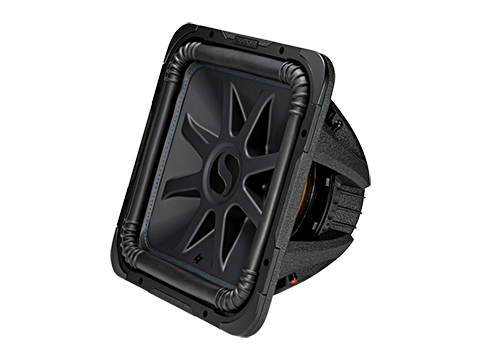

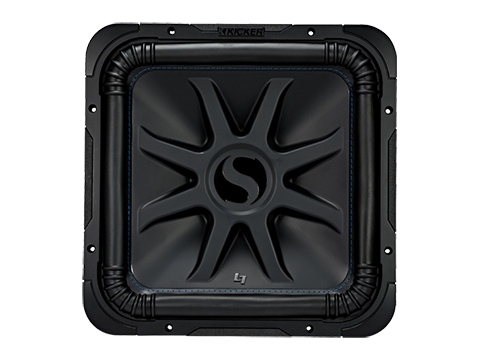

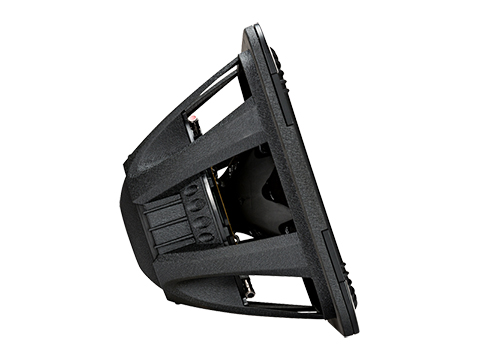

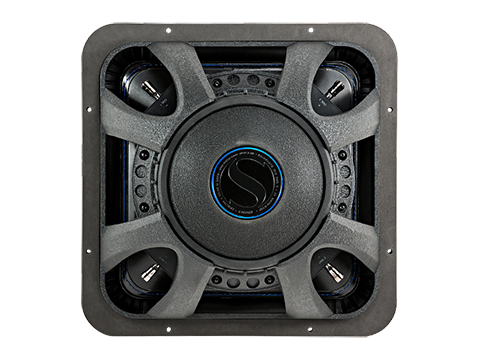

Solo-Baric L7S 15 Inch Subwoofer

Square Matters

The heavy-duty motor structure includes a large-diameter spider for less flex, longer life and superior accuracy. High-temp voice coil wire winding completes a powerful Comp motor that makes the most of every watt you give it.

Features:

Dual Two-Ohm Voice Coils
Injection-Molded Polypropylene Cone
Patented Corner Ribs Minimize Distortion
SoloKon™ 360-Degree Back Bracing
Ribbed Santoprene Surround With Blue Surround Stitching
UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
Thick Tinsel Leads
Large Ceramic Magnet
Cast Aluminum Basket
Satin-Nickel Plated, Spring-Loaded Speaker Terminals

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The Solo-Baric L7S 15-Inch Subwoofer works best with a sealed or ported enclosure and 1,000 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters

44L7S152 T/S Parameters

Product Dimension Sheet

44L7S152 Dimensions

Size (IN.,CM)

15, 38.1

Impedance (OHMS)

2 DVC

Recommended Amplifier Power (watts RMS)

1000

Peak Power (watts, per ANSI/CTA-2031-A)

2000

Sensitivity (dB 1w/1m)

89.4

Frequency Response (Hz)

18-100

Mounting Depth (IN.,CM)

8-11/16, 22.1

Mounting Cutout, Square (IN.,CM)

13-3/4, 34.9

Min Rec Sealed Box Volume (CU. FT., Liters)

2.0, 56.64

Max Rec Sealed Box Volume (CU. FT., Liters)

6.0, 169.9

Min Rec Vented Box Volume (CU. Ft., Liters)**

3.0, 85.0

Max Rec Vented Box Volume (CU. Ft., Liters)**

6.0, 169.9

What's in the box?

one 15-inch subwoofer, one owner's manual, two stickers

Warranty

When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
