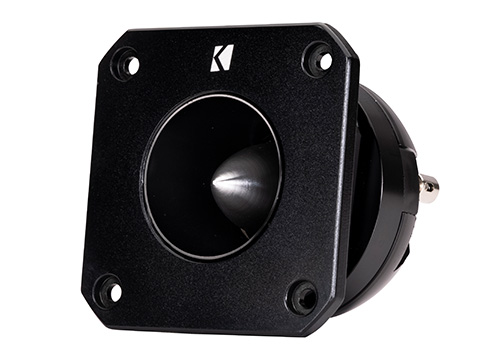

49ST4TW front view

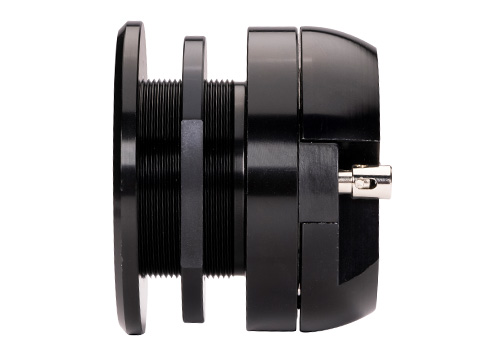

49ST4TW left view

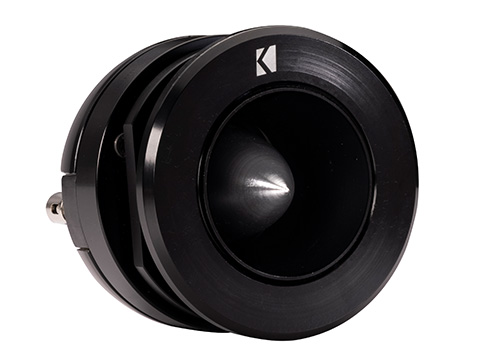

49ST4TW right view

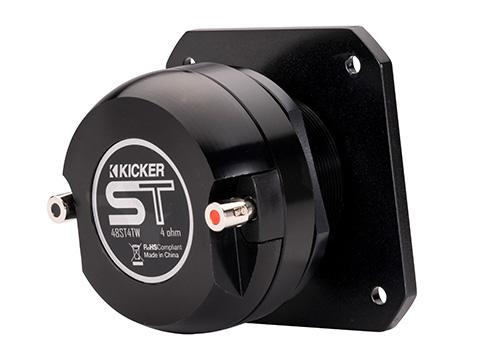

49ST4TW back view
Enlarge front view
Enlarge left view
Enlarge right view
Enlarge back view
ST4TW
1.5" Tweeter 4 Ohm
model: 49ST4TW
ST-Series street/P.A.-style bullet tweeter.
*sold individually, not in pairs.

PA Style, High Output

  • Extremely efficient, horn-loaded aluminum diaphragm for extreme output
  • Single-unit, PA-style tweeter perfect for competition-level SPL systems
  • Voiced for clear vocals to match with high-output bass
  • Includes front or rear mount options, in addition to trim bezel options
  • Spring-loaded terminals accept 16 AWG wire
  • In-line 6dB crossover
  • Field-replaceable voice-coil assembly available (ST3RK/ST4RK)

Specifications
SingleTweeter [in, mm]
1.5, 38
Dome Material
aluminum
Design
bullet
Impedance [Ohms]
4
Recommended Amp Power [watts RMS]
15-50
Peak Power Handling [watts]
100
Frequency Response [Hz]
3k-20k
Sensitivity [1W, 1m]
108
In-Line Crossover [dB]
6, high-pass
Mounting Depth [in, mm]
1-1/4, 31
Mounting Diameter [in, mm]
2-7/8, 73
Thread Length [in, mm]
1-3/16, 30
Thread Diameter [in, mm]
1-7/8, 48
