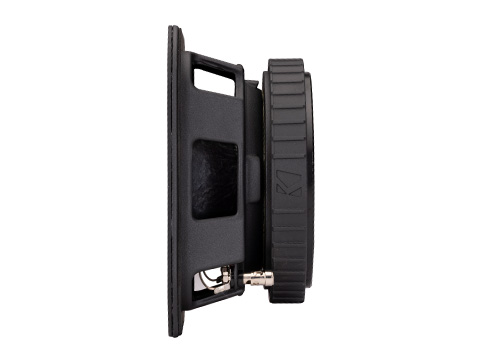

49ST7MR4 left view

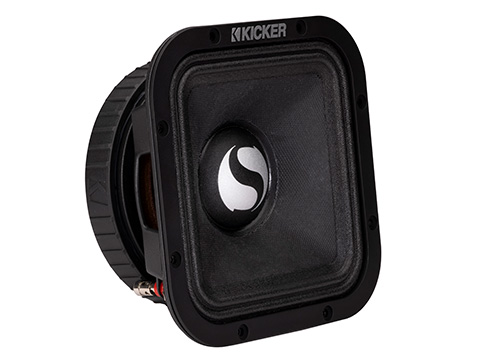

49ST7MR4 right view

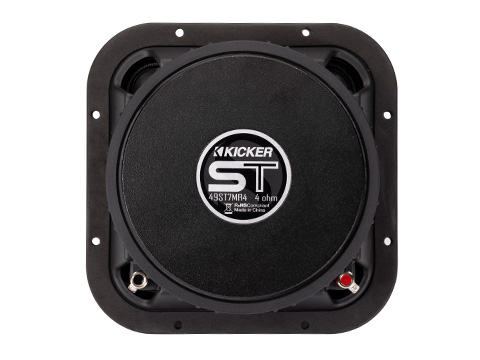

49ST7MR4 back view
Enlarge front view
Enlarge left view
Enlarge right view
Enlarge back view
ST7MR4
Midrange 4 Ohm
model: 49ST7MR4
ST-Series street/P.A.-style speakers
Sold in pairs.

PA Style, High Output

  • PA-style woofers built for extreme loudness
  • Square cone design provides nearly 20% more output
  • Extreme power handling and efficiency
  • Voiced for clear vocals cutting through very loud bass
  • Perfect for competition-level SPL systems
  • Exceptionally wide frequency response
  • Square, pressed pulp cone with treated cloth surround
  • Spring-loaded terminals accept 12 AWG wire

Specifications
Square Woofers [in, mm]
7, 180
Impedance [Ohms]
4
Recommended Amp Power [watts RMS]
50-250
Peak Power Handling [watts]
500
Frequency Response [Hz]
80-7.5k
Sensitivity [1W, 1m]
92
Mounting Depth [in, mm]
3-1/16, 78
Mounting Cutout [in, mm]
5-7/8 x 5-7/8, 150x150
