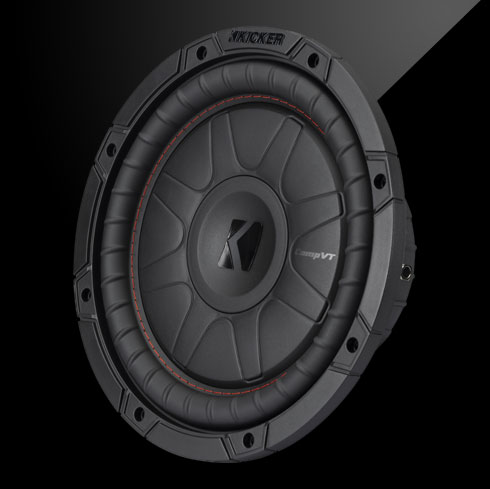

10" CompVT 4 Ohm
The KICKER® CompVT® Subwoofer offers high power handling in a slimline design.

model: 52CVT104

10" CompVT 4 Ohm

The CompVT 10-Inch Subwoofer is available as a 4Ω slimline driver.

New and improved, precise KICKER engineering allows the CompVT to pound with limited space. A proprietary four-layer voice coil collaborating with SoloKon™ cone technology, provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.

The CompVT Subwoofer works best with a sealed or ported enclosure for its substantial power handling.

CompVT Powerbar Graph
Specifications
Product Dimension Sheet
52CVT10 Dimensions
SIZE [in, cm]:
10, 25
IMPEDANCE [Ohms]:
4 SVC
Recommended Amplifier Power (watts RMS)
180-375
Peak Power (watts, per ANSI/CTA-2031-A)
750
SENSITIVITY [dB 1w/1m]:
87.2
MOUNTING DEPTH [in, cm]:
4-1/4, 10.8
MOUNTING DIAMETER [in, cm]:
9-3/16, 23.3
MIN SEALED BOX VOL [cu. ft, L]:
0.8, 22.5
MAX SEALED BOX VOL [cu. ft, L]:
3, 85
MIN VENTED BOX VOL [cu. ft, L]:
1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]:
1.75, 49.6
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
