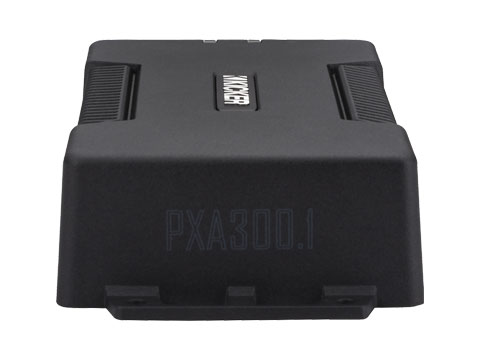

PXA300.1 Amplifier
Completely re-engineered, the PXA300.1 mono amp supplies big power to your subwoofer, in a compact, waterproof design for the trickiest installs.
Class-Leading Power
- Waterproof amplifier design with IP66 and IP67 certifications
- Ideal for UTVs, off-road vehicles, hot rods or space-challenged vehicles
- High-efficiency Class-D technology
- Huge power from a small footprint – rated at 500 watts Dynamic Power!**
- One-Ohm stable
- Dual turn-on modes (choice of DC offset or 12v trigger)
- Includes inline power and ground couplers that need no soldering or crimping
- Stainless-steel mounting hardware included
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
Specifications
| Power (watts/ch), 1 Ohm Mono: |
| 300 x 1 |
| Power (watts/ch), 2 Ohm Mono: |
| 250 x 1 |
| Power (watts/ch), 4 Ohm Mono: |
| 150 x 1 |
| **Dynamic Power (watts): |
| 500 |
| Frequency Response (Hz, +0/-3dB): |
| 25-200 |
| Crossovers: |
| 60/80/100/120Hz lowpass, 12dB/octave; subsonic fixed at 25Hz, 24dB/octave |
| Bass Boost: |
| selectable 0/+6dB, centered at 40Hz |
| Dimensions (in, mm): |
| W: 4-1/2, 114.7 |
| H: 1-7/8, 47 |
| L: 9-3/4, 247.5 |
| CXARC Remote capable (sold separately): |
| Yes |
| What's in the Box: |
| Waterproof IP66/IP67 power sports amplifier
2 DC power couplers Stainless-steel mounting hardware Customer information Card |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here. |
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision® analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
Support
Files
PXA Amplifier Manual | Download
PXA300.1 White Paper | Download
