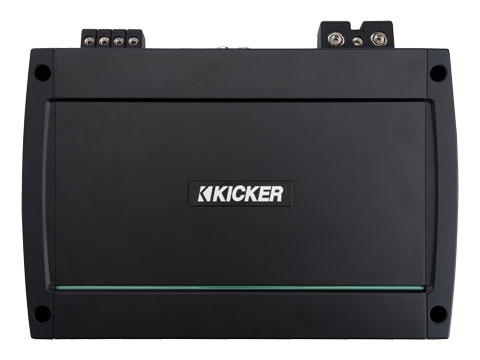

model: 51KXMA15001
BIG BUMP
Experience the perfect way to get really big bass on your boat! A mighty Class-D power plant, 24dB crossover and subsonic filter all help you dial in the best sound. Use the remote level control to adjust the bass right from the dash and connect the full-range RCA outputs to expand your system!
- Ultra-Efficient Class D Design
- 2500 Watts of Dynamic Power
- Mono Amplifier
- Conformal-Coated Circuit Board
- KMBLC Remote Level Control Included
- Variable 24dB Crossover
- KickEQ+™ Variable 0-6dB Bass Boost
- Variable 10-80Hz Subsonic Filter
- RCA Pass Through Output
- Real Marine™ ABYC/NMMA-Compliant Power Connections
- 316L Stainless-Steel Hardware Included
Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!
This KXMA amplifier delivers as much as 1500+ watts at 1 Ohm stable. See below for more details.
| MODEL |
| KXMA1500.1 |
| KXMA1500.1 White Paper |
| 51KXMA15001-wp.pdf |
| KXMA1500.1 Dimensions |
| KXMA1500.1 Product Dimensions PDF |
| Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD): |
| 1500x1 +/-10% |
| Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD): |
| 1500x1 |
| Power (watts/ch) 4 Ohm Mono (@ 14.4v, <1%THD): |
| 750x1 |
| Dynamic Power (watts): |
| 2500 |
| Frequency Response (Hz): |
| 10-160 |
| Signal-to-Noise Ratio (dB; A-weighted, re: rated power): |
| -95 |
| Signal-to-Noise Ratio (dB; 1W, A-weighted, CTA-2006): |
| -75 |
| Input Sensitivity: |
| low level 125mV-5V; high level 250mV-10V |
| Crossover: |
| variable LP, 40-160Hz, 24dB/octave |
| Subsonic Filter: |
| variable 10-80Hz, 24dB/octave |
| KickEQ+™ Parametric Bass Boost: |
| Boost – Variable 0-6dB Center Frequency – 20-80Hz Bandwidth 1-5 |
| Dimensions (in, cm): |
| H – 2-1/8, 5.5; W – 7-7/16, 18.9; L – 11-3/16, 28.4 |
| Remote Level Control: |
| KMBLC included |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here. |
RMS Power test @ 14.4v @ </- 1% THD+N, Audio Precision® APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Dynamic Power test @ 14.4v @ </- 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
Important Safety Information
When installing KICKER amplifiers (car or marine) in a boat or other vehicle/environment where flammable fuel vapors can accumulate rather than dissipate, you must use appropriate MARINE fuses, MARINE fuse holders, and MARINE wiring to minimize the risk of fire or explosion.
